lurupa_cmd.cpp File Reference

Lurupa's command line client. More...

#include "svnversion.h"
#include <lurupa/globals.h>
#include <lurupa/Lurupa.h>
#include <lurupa/Lp.h>
#include <lr/Lr.h>
#include <ltdl.h>
#include <cmath>
#include <cstdlib>
#include <cstring>
#include <errno.h>
#include <iostream>
#include <new>
#include <time.h>

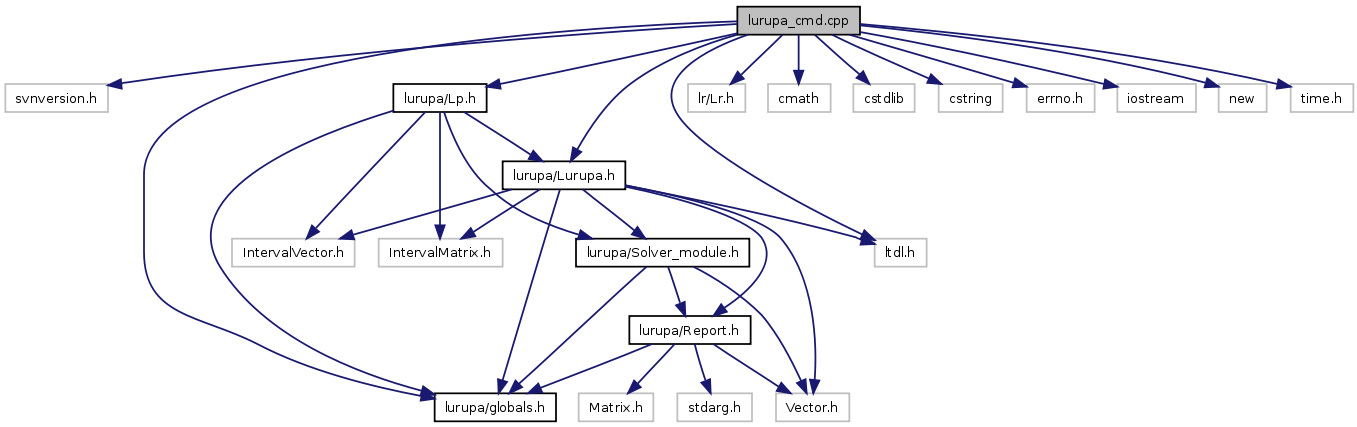

Include dependency graph for lurupa_cmd.cpp:


Classes
struct	Bound
	Information about a Bound. More...
struct	Certificate
	A certificate. More...
struct	Enclosure
	An enclosure. More...
struct	Lp_stats
	Information about an Lp. More...
Functions
void	compute_dual (Lurupa lurupa, Lp lp, Lp_stats *lp_stats)
	Compute dual certificate.
void	compute_lower (Lurupa lurupa, Lp lp, Lp_stats *lp_stats)
	Compute lower bound.
void	compute_primal (Lurupa lurupa, Lp lp, Lp_stats *lp_stats)
	Compute primal certificate.
void	compute_upper (Lurupa lurupa, Lp lp, Lp_stats *lp_stats)
	Compute upper bound.
int	main (int argc, char *argv[])
	Command line main.
void	out_of_memory ()
	Out of memory handler.
void	print_bound_stats (const Bound &bound, const Lp_stats &lp_stats)
	Print bound statistics.
void	print_brief_version (const Lurupa &lurupa, bool solver_module_set)
	Print brief version information.
void	print_model_data (const Lp_stats &lp_stats)
	Print model data.
void	print_usage (char *self, const Lurupa &lurupa, bool solver_module_set)
	Print usage information.
void	print_version (const Lurupa &lurupa, bool solver_module_set)
	Print version information.
void	process_solving_status (Lp_stats &lp_stats)
	Process solving statistics.
void	report_bound_quality (Lp_stats &lp_stats)
	Compute bound quality.
void	report_dual (Lp_stats &lp_stats)
	Report dual certificate.
void	report_lower (Lp *lp, Lp_stats &lp_stats)
	Report lower bound.
void	report_primal (Lp_stats &lp_stats)
	Report primal certificate.
void	report_upper (Lp *lp, Lp_stats &lp_stats)
	Report upper bound.
const char *	rounded_string (double x, int direction)
	Correctly round double to string.
void	start_timer (clock_t &pt, int &rt)
	Start timer.
void	stop_timer (clock_t &pt, int &rt)
	Stop timer.
const char *	timer_diff (clock_t start_pt, clock_t end_pt, int start_rt, int end_rt, double &pt_diff, double &rt_diff)
	Compute timer difference.
void	write_csv_table (const Lp_stats &lp_stats, FILE *csv)
	Write csv table.
void	write_latex_table (const Lp_stats &lp_stats, FILE *latex)
	Write LaTeX table.
void	write_tables (short tables, const Lp_stats &lp_stats, FILE latex, FILE csv)
	Write tables.
Variables
static const char *	copyright = "Copyright (C) 2006 Christian Keil"
	Copyright string.
static const char *	version = "Lurupa command line client 1.2"
	Version string.

Detailed Description

Lurupa's command line client.

This is Lurupa's command line client. It uses the core logic and a user specified solver module to compute verified bounds for a linear program. The results and the time needed to compute them are displayed and written to disk in csv or LaTeX format.

Author:: Christian Keil

Id: lurupa_cmd.cpp 533 2008-06-12 20:08:12Z keil

Function Documentation

void compute_dual	(	Lurupa *	lurupa,
		Lp *	lp,
		Lp_stats *	lp_stats
	)

Compute dual certificate.

Compute and time a dual certificate for primal infeasibility lp.

Parameters:

`[in]`	lurupa	Lurupa reference used to compute certificate
`[in]`	lp	the lp
`[out]`	lp_stats	stores certificate status and time

References Lp_stats::dual, Lurupa::dual_certificate(), Certificate::proc_time, Certificate::realtime, start_timer(), Certificate::status, stop_timer(), Certificate::time_status, and timer_diff().

Referenced by main().

void compute_lower	(	Lurupa *	lurupa,
		Lp *	lp,
		Lp_stats *	lp_stats
	)

Compute lower bound.

Compute and time a lower bound for the optimal value of lp.

Parameters:

`[in]`	lurupa	Lurupa reference used to compute bound
`[in]`	lp	the lp
`[out]`	lp_stats	stores bound and time

References Bound::iterations, Lp_stats::lower, Lurupa::lower_bound(), Bound::proc_time, Bound::realtime, start_timer(), Bound::status, stop_timer(), Bound::time_status, timer_diff(), and Bound::value.

Referenced by main().

void compute_primal	(	Lurupa *	lurupa,
		Lp *	lp,
		Lp_stats *	lp_stats
	)

Compute primal certificate.

Compute and time a primal certificate for dual infeasibility of lp.

Parameters:

`[in]`	lurupa	Lurupa reference used to compute certificate
`[in]`	lp	the lp
`[out]`	lp_stats	stores certificate status and time

References Lp_stats::primal, Lurupa::primal_certificate(), Certificate::proc_time, Certificate::realtime, start_timer(), Certificate::status, stop_timer(), Certificate::time_status, and timer_diff().

Referenced by main().

void compute_upper	(	Lurupa *	lurupa,
		Lp *	lp,
		Lp_stats *	lp_stats
	)

Compute upper bound.

Compute and time an upper bound for the optimal value of lp.

Parameters:

`[in]`	lurupa	Lurupa reference used to compute bound
`[in]`	lp	the lp
`[out]`	lp_stats	stores bound and time

References Bound::iterations, Bound::proc_time, Bound::realtime, start_timer(), Bound::status, stop_timer(), Bound::time_status, timer_diff(), Lp_stats::upper, Lurupa::upper_bound(), and Bound::value.

Referenced by main().

int main	(	int	argc,
		char *	argv[]
	)

Command line main.

Parse the command line arguments and call Lurupa appropriately. Print the results and write them to disk.

References Lp_stats::automatic, Enclosure::compute, Certificate::compute, Bound::compute, compute_dual(), compute_lower(), compute_primal(), compute_upper(), Lurupa::cond(), Lp_stats::condition, Lp_stats::dual, Lp_stats::is_maximize, l, Enclosure::lower, Lp_stats::lower, LU_T_CSV, LU_T_LATEX, matlab, Lp::maximize, Lp::name, Lp_stats::name, octave, Lp_stats::optimal_value, out_of_memory(), Lp_stats::path, Lp_stats::primal, print_brief_version(), print_model_data(), print_usage(), print_version(), process_solving_status(), Lurupa::read_lp(), Lurupa::report, report_bound_quality(), report_dual(), report_lower(), report_primal(), report_upper(), Lurupa::rho_d(), Lp_stats::rho_d, Lurupa::rho_p(), Lp_stats::rho_p, rounded_string(), Lurupa::set_alpha(), Report::set_csv_style(), Lurupa::set_eta(), Lurupa::set_inflate(), Lurupa::set_module(), Lurupa::set_module_options(), Report::set_verbosity(), Lurupa::solve_lp(), Lp_stats::solve_proc_time, Lp_stats::solve_realtime, Lp_stats::solve_time_status, ss_failure, ss_feasible, ss_infeasible, ss_unbounded, start_timer(), Lp_stats::status, stop_timer(), timer_diff(), Lp_stats::total_proc_time, Lp_stats::total_realtime, Lp_stats::total_time_status, Enclosure::upper, Lp_stats::upper, and write_tables().

void print_bound_stats	(	const Bound &	bound,
		const Lp_stats &	lp_stats
	)

Print bound statistics.

Print statistics about a computed bound. These include of course the bound itself along with the count of algorithm iterations needed, the time needed, the ratio of the time needed to compute the bounds and the time needed to compute the approximate optimal value, the status of the computed bound (e.g. bound successfully computed, no bound computed because of rank deficiency).

Parameters:

`[in]`	bound	the bound's statistics
`[in]`	lp_stats	contains the time to solve the model

References bound_status_string, Bound::iterations, Bound::proc_time, Bound::realtime, Lp_stats::solve_proc_time, Lp_stats::solve_realtime, Bound::status, and Bound::time_status.

Referenced by report_lower(), and report_upper().

void print_brief_version	(	const Lurupa &	lurupa,
		bool	solver_module_set
	)

Print brief version information.

Print brief version information suitable for log output.

Parameters:

`[in]`	lurupa	Lurupa instance to print information about
`[in]`	solver_module_set	whether a solver module is loaded

References copyright, Lurupa::print_core_brief_version(), Lurupa::print_module_brief_version(), and version.

Referenced by main().

void print_model_data ( const Lp_stats & lp_stats )

Print model data.

Print the name and the optimization direction of the model to be processed.

Parameters:

[in] lp_stats contains the model's data

References Lp_stats::is_maximize, and Lp_stats::name.

Referenced by main().

void print_usage	(	char *	self,
		const Lurupa &	lurupa,
		bool	solver_module_set
	)

Print usage information.

Print usage information for the command line client; which parameters with which values are supported.

Parameters:

`[in]`	self	path to running program
`[in]`	lurupa	Lurupa instance to access solver module
`[in]`	solver_module_set	whether a solver module is loaded

References Lurupa::print_module_options(), and version.

Referenced by main().

void print_version	(	const Lurupa &	lurupa,
		bool	solver_module_set
	)

Print version information.

Print version information for the application parts.

Parameters:

`[in]`	lurupa	Lurupa instance to print information about
`[in]`	solver_module_set	whether a solver module is loaded

References copyright, Lurupa::print_core_version(), Lurupa::print_module_version(), and version.

Referenced by main().

void process_solving_status ( Lp_stats & lp_stats )

Process solving statistics.

Print statistics regarding the solving of the lp like the approximate optimal value, the time needed to compute it, the status of the lp-solver (e.g., the solver's judgement of the model's feasibility or timeout while solving the model). Set lp.lower.compute and lp.upper.compute to false if the lp-solver did not judge the model to be either feasible, infeasible, or unbounded, that is returned with any kind of error.

Parameters:

[in,out] lp_stats contains the solving statistics

References Bound::compute, Lp_stats::lower, Lp_stats::optimal_value, Lp_stats::solve_proc_time, Lp_stats::solve_realtime, Lp_stats::solve_time_status, solver_status_string, ss_feasible, ss_infeasible, ss_unbounded, Lp_stats::status, and Lp_stats::upper.

Referenced by main().

void report_bound_quality ( Lp_stats & lp_stats )

Compute bound quality.

Compute and print the accuracy of the verified bounds. It is computed by

$\mu(a, b) = \frac{\lvert a - b \rvert} {\max \{1, \lvert a + b \rvert / 2\}},$

where $a$ and $b$ are the computed bounds or the approximate optimal value if one of the bounds could not be computed. Note that $\mu$ is computed from the bound values as they are computed and not from the printed ones. The printed values of the bounds are rounded to display a rigorous enclosure of the optimal value.

Parameters:

[in,out] lp_stats contains the verified bounds

References Lp_stats::bound_quality, Bound::compute, Lp_stats::lower, Lp_stats::optimal_value, Lp_stats::upper, and Bound::value.

Referenced by main().

void report_dual ( Lp_stats & lp_stats )

Report dual certificate.

Report success and time of computing a dual certificate for an lp.

Parameters:

[in] lp_stats contains the certificate to report

References bound_status_string, Lp_stats::dual, Certificate::proc_time, Certificate::realtime, Certificate::status, and Certificate::time_status.

Referenced by main().

void report_lower	(	Lp *	lp,
		Lp_stats &	lp_stats
	)

Report lower bound.

Report value and stats of the lower bound on the optimal value of lp.

Parameters:

`[in]`	lp	the lp
`[in]`	lp_stats	the stats

References Lp_stats::lower, Lp_stats::optimal_value, print_bound_stats(), rounded_string(), ss_feasible, Lp_stats::status, and Bound::value.

Referenced by main().

void report_primal ( Lp_stats & lp_stats )

Report primal certificate.

Report success and time of computing a primal certificate for an lp.

Parameters:

[in] lp_stats contains the certificate to report

References bound_status_string, Lp_stats::primal, Certificate::proc_time, Certificate::realtime, Certificate::status, and Certificate::time_status.

Referenced by main().

void report_upper	(	Lp *	lp,
		Lp_stats &	lp_stats
	)

Report upper bound.

Report value and stats of the upper bound on the optimal value of lp.

Parameters:

`[in]`	lp	the lp
`[in]`	lp_stats	the stats

References Lp_stats::optimal_value, print_bound_stats(), rounded_string(), ss_feasible, Lp_stats::status, Lp_stats::upper, and Bound::value.

Referenced by main().

const char* rounded_string	(	double	x,
		int	direction
	)

Correctly round double to string.

Generate a correctly rounded string representation of x. The direction of rounding can be selected via direction. Possible values are LR_RND_DOWN, LR_RND_UP, LR_RND_NEAR, LR_RND_CHOP.

Parameters:

`[in]`	x	the double value to convert
`[in]`	direction	direction of rounding

Returns:: rounded string representation

Referenced by main(), report_lower(), and report_upper().

void start_timer	(	clock_t &	pt,
		int &	rt
	)

Start timer.

Get realtime and process time counter values. These can be compared to the ones returned by stop_timer to compute the elapsed time.

Parameters:

`[out]`	pt	process time counter value
`[out]`	rt	realtime counter value

See also:: stop_timer

Referenced by compute_dual(), compute_lower(), compute_primal(), compute_upper(), and main().

void stop_timer	(	clock_t &	pt,
		int &	rt
	)

Stop timer.

Get realtime and process time counter values. These can be compared to the ones returned by start_timer to compute the elapsed time.

Parameters:

`[out]`	pt	process time counter value
`[out]`	rt	realtime counter value

See also:: start_timer

Referenced by compute_dual(), compute_lower(), compute_primal(), compute_upper(), and main().

const char* timer_diff	(	clock_t	start_pt,
		clock_t	end_pt,
		int	start_rt,
		int	end_rt,
		double &	pt_diff,
		double &	rt_diff
	)

Compute timer difference.

Compute the elapsed realtime and process time verifying that no wrap around in the process time counter occured. If a wrap around occured or cannot be ruled out or the calls to the time routines failed, return a short string explaining what happened.

Parameters:

`[in]`	start_pt	process time counter value at start
`[in]`	end_pt	process time counter value at end
`[in]`	start_rt	realtime counter value at start
`[in]`	end_rt	realtime counter value at end
`[out]`	pt_diff	elapsed process time in seconds
`[out]`	rt_diff	elapsed realtime in seconds

Returns:: time status string

Referenced by compute_dual(), compute_lower(), compute_primal(), compute_upper(), and main().

void write_csv_table	(	const Lp_stats &	lp_stats,
		FILE *	csv
	)

Write csv table.

Write a line containing the gathered results with maximal precision to disk in csv format. This includes

name of the model
status of the solver solving the original model
approximate optimal value
time needed to compute the approximate value
verified lower bound's data
- bound status
- bound value
- number of iterations to compute the bound
- time needed to compute the bound
verified upper bound's data
- bound status
- bound value
- number of iterations to compute the bound
- time needed to compute the bound
relative accuracy of the bounds

Parameters:

`[in]`	lp_stats	contains the model's and bound's statistics
`[in]`	csv	file to be written to

References Lp_stats::bound_quality, bound_status_string, Bound::compute, Bound::iterations, Lp_stats::lower, Lp_stats::name, Lp_stats::optimal_value, Bound::proc_time, Bound::realtime, Lp_stats::solve_proc_time, Lp_stats::solve_realtime, solver_status_string, Bound::status, Lp_stats::status, Lp_stats::upper, and Bound::value.

Referenced by write_tables().

void write_latex_table	(	const Lp_stats &	lp_stats,
		FILE *	latex
	)

Write LaTeX table.

Write a line containing the gathered results to disk in LaTeX table format with precision tailored to viewing. This consists of

name of the model
approximate optimal solution or the solver status if solving failed
time needed to solve the model
verified lower bound's data
- bound value or the bound status if its computation failed
- number of algorithm iterations to compute the bound
- ratio of the time needed to compute the bound and the time needed to solve the model
verified upper bound's data
- bound value or the bound status if its computation failed
- number of algorithm iterations to compute the bound
- ratio of the time needed to compute the bound and the time needed to solve the model
relative accuracy of the bounds

Parameters:

`[in]`	lp_stats	contains the model's and bound's statistics
`[in]`	latex	file to be written to

References Lp_stats::bound_quality, bound_status_string, bs_verified, Bound::compute, Bound::iterations, Lp_stats::lower, Lp_stats::name, Lp_stats::optimal_value, Bound::proc_time, Bound::realtime, Lp_stats::solve_proc_time, Lp_stats::solve_realtime, solver_status_string, ss_feasible, Bound::status, Lp_stats::status, Lp_stats::upper, and Bound::value.

Referenced by write_tables().

void write_tables	(	short	tables,
		const Lp_stats &	lp_stats,
		FILE *	latex,
		FILE *	csv
	)

Write tables.

Calls the routines to write LaTeX and csv tables as specified by tables.

Parameters:

`[in]`	tables	specifies the tables to be written (c.f. globals.h)
`[in]`	lp_stats	contains the model's and bound's statistics
`[in]`	latex	file to write LaTeX table to
`[in]`	csv	file to write csv table to

References LU_T_CSV, LU_T_LATEX, write_csv_table(), and write_latex_table().

Referenced by main().

lurupa_cmd.cpp File Reference

Classes

Functions

Variables

Detailed Description

Function Documentation
